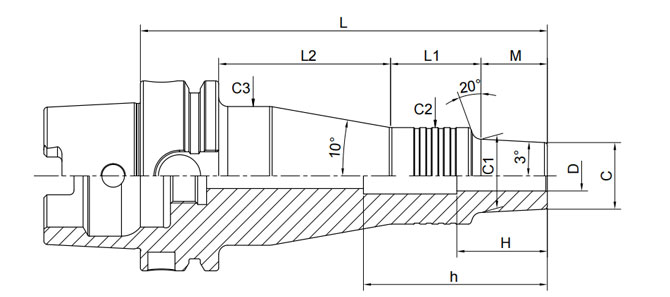

Tamaño | D | C | L | M | L1 | C1 | C2 | H | H |
HSK50A-SFRB6-75-M22 | 6 | 14 | 75 | 22 | 27 | 16,3 | 32 | 18 | 50 |
HSK50A-SFRB6-95-M42 | 6 | 14 | 95 | 42 | 27 | 18,4 | 32 | 18 | 70 |
HSK50A-SFRB6-125-M42 | 6 | 14 | 125 | 42 | 57 | 18,4 | 32 | 18 | 100 |
HSK50A-SFRB8-75-M22 | 8 | 18 | 75 | 22 | 27 | 20,3 | 36 | 24 | 49 |
HSK50A-SFRB8-95-M42 | 8 | 18 | 95 | 42 | 27 | 22,4 | 36 | 24 | 69 |
HSK50A-SFRB8-125-M42 | 8 | 18 | 125 | 42 | 57 | 22,4 | 32 | 24 | 100 |
HSK50A-SFRB10-75-M22 | 10 | 22 | 75 | 22 | 27 | 24,3 | 32 | 30 | 50 |
HSK50A-SFRB10-95-M42 | 10 | 22 | 95 | 42 | 27 | 26,4 | 32 | 30 | 70 |
HSK50A-SFRB10-125-M42 | 10 | 22 | 125 | 42 | 57 | 26,4 | 32 | 30 | 100 |
HSK50A-SFRB12-75-M42 | 12 | 26 | 75 | 22 | 27 | 28,3 | 49 | 30 | 51 |
HSK50A-SFRB12-95-M42 | 12 | 26 | 95 | 42 | 27 | 30,4 | 42 | 30 | 72 |
HSK50A-SFRB12-125-M42 | 12 | 26 | 125 | 42 | 57 | 30,4 | 42 | 30 | 98 |
HSK50A-SFRB16-75-M22 | 16 | 32 | 75 | 22 | 27 | 34,3 | 49 | 32 | 51 |
HSK50A-SFRB16-105-M22 | 16 | 32 | 105 | 22 | 57 | 34,3 | 42 | 32 | 78 |
HSK50A-SFRB20-75-M22 | 20 | 38 | 75 | 22 | 27 | 40,3 | 49 | 40 | 51 |
HSK50A-SFRB20-105-M22 | 20 | 38 | 105 | 22 | 57 | 40,3 | 49 | 40 | 76 |
Tamaño | D | L | M | L1 | C1 | C2 | H | H | |
HSK63A-SFRB6-75-M22 | 6 | 14 | 75 | 22 | 27 | 16,3 | 32 | 18 | 50 |
HSK63A-SFRB6-95-M42 | 6 | 14 | 95 | 42 | 27 | 18,4 | 32 | 18 | 70 |
HSK63A-SFRB6-105-M22 | 6 | 14 | 105 | 22 | 57 | 16,3 | 36 | 18 | 80 |
HSK63A-SFRB6-120-M67 | 6 | 14 | 120 | 67 | 27 | 21 | 36 | 18 | 95 |
HSK63A-SFRB6-125-M42 | 6 | 14 | 125 | 42 | 57 | 18,4 | 36 | 18 | 100 |
HSK63A-SFRB6-150-M67 | 6 | 14 | 150 | 67 | 57 | 21 | 32 | 18 | 125 |
HSK63A-SFRB8-75-M22 | 8 | 18 | 75 | 22 | 27 | 20,3 | 32 | 24 | 50 |
HSK63A-SFRB8-95-M42 | 8 | 18 | 95 | 42 | 27 | 22,4 | 32 | 24 | 70 |
HSK63A-SFRB8-105-M22 | 8 | 18 | 105 | 22 | 57 | 20,3 | 36 | 24 | 80 |
HSK63A-SFRB8-120-M67 | 8 | 18 | 120 | 67 | 27 | 25 | 32 | 24 | 95 |
8 | 18 | 125 | 42 | 57 | 22,4 | 36 | 24 | 100 | |
HSK63A-SFRB8-150-M67 | 8 | 18 | 150 | 67 | 57 | 25 | 36 | 24 | 125 |
HSK63A-SFRB10-75-M22 | 10 | 22 | 75 | 22 | 27 | 24,3 | 36 | 30 | 48 |
HSK63A-SFRB10-95-M42 | 10 | 22 | 95 | 42 | 27 | 26,4 | 32 | 30 | 68 |
HSK63A-SFRB10-105-M22 | 10 | 22 | 105 | 22 | 57 | 24,3 | 36 | 30 | 78 |
HSK63A-SFRB10-120-M67 | 10 | 22 | 120 | 67 | 27 | 29 | 36 | 30 | 93 |
HSK63A-SFRB10-125-M42 | 10 | 22 | 125 | 42 | 57 | 26,4 | 36 | 30 | 98 |
HSK63A-SFRB10-150-M67 | 10 | 22 | 150 | 67 | 57 | 29 | 36 | 30 | 123 |
HSK63A-SFRB12-75-M22 | 12 | 26 | 75 | 22 | 27 | 28,3 | 42 | 30 | 48 |
HSK63A-SFRB12-95-M42 | 12 | 26 | 95 | 42 | 27 | 30,4 | 42 | 30 | 68 |
HSK63A-SFRB12-105-M22 </Td> | 12 | 26 | 105 | 22 | 57 | 28,3 | 50 | 30 | 75 |
HSK63A-SFRB12-120-M67 | 12 | 26 | 120 | 67 | 27 | 33 | 50 | 30 | 93 |
HSK63A-SFRB12-125-M42 | 12 | 26 | 125 | 42 | 57 | 30,4 | 50 | 30 | 95 |
HSK63A-SFRB12-150-M67 | 12 | 26 | 150 | 67 | 57 | 33 | 50 | 30 | 120 |
HSK63A-SFRB12-155-M42 | 12 | 26 | 155 | 42 | 87 | 30,4 | 50 | 30 | 125 |
HSK63A-SFRB12-180-M67 | 12 | 26 | 180 | 67 | 87 | 33 | 50 | 30 | 150 |
HSK63A-SFRB16-75-M22 | 16 | 32 | 75 | 22 | 27 | 34,3 | 50 | 32 | 48 |
HSK63A-SFRB16-95-M42 | 16 | 32 | 95 | 42 | 27 | 36,4 | 50 | 32 | 68 |
HSK63A-SFRB16-105-M22 | 16 | 32 | 105 | 22 | 57 | 34,3 | 50 | 32 | 75 |
HSK63A-SFRB16-120-M67 | 16 | 32 | 120 | 67 | 27 | 39 | 50 | 32 | 93 |
HSK63A-SFRB16-125-M42 | 16 | 32 | 125 | 42 | 57 | 36,4 | 42 | 32 | 95 |
16 | 32 | 135 | 22 | 87 | 34,3 | 50 | 32 | 105 | |
HSK63A-SFRB16-150-M67 | 16 | 32 | 150 | 67 | 57 | 39 | 42 | 32 | 120 |
HSK63A-SFRB16-155-M42 | 16 | 32 | 155 | 42 | 87 | 36,4 | 50 | 32 | 125 |
HSK63A-SFRB16-180-M67 | 16 | 32 | 180 | 67 | 87 | 39 | 50 | 32 | 150 |
HSK63A-SFRB20-95-M42 | 20 | 38 | 95 | 42 | 27 | 42,4 | 53 | 40 | 68 |
HSK63A-SFRB20-120-M67 | 20 | 38 | 120 | 67 | 27 | 45 | 50 | 40 | 93 |
HSK63A-SFRB20-125-M42 | 20 | 38 | 125 | 42 | 57 | 42,4 | 50 | 40 | 95 |
HSK63A-SFRB20-150-M67 | 20 | 38 | 150 | 67 | 57 | 45 | 50 | 40 | 120 |
HSK63A-SFRB20-155-M42 | 20 | 38 | 155 | 42 | 87 | 42,4 | 50 | 40 | 125 |
HSK63A-SFRB20-180-M67 | 20 | 38 | 180 | 67 | 87 | 45 | 50 | 40 | 150 |
HSK63A-SFRB25-95-M42 | 45 | 95 | 42 | 27 | 49,4 | 53 | 45 | 68 | |
HSK63A-SFRB25-125-M42 | 25 | 45 | 125 | 42 | 57 | 49,4 | 53 | 45 | 95 |
HSK63A-SFRB25-155-M42 | 25 | 45 | 155 | 42 | 87 | 49,4 | 50 | 45 | 125 |
Tamaño | D | C | L | M | L1 | C1 | C2 | H | H |
HSK100A-SFRB6-90-M22 | 6 | 14 | 90 | 22 | 39 | 16,3 | 32 | 18 | 60 |
HSK100A-SFRB6-110-M42 | 6 | 14 | 110 | 42 | 39 | 18,4 | 32 | 18 | 80 |
HSK100A-SFRB6-120-M22 | 6 | 14 | 120 | 22 | 69 | 16,3 | 36 | 18 | 90 |
HSK100A-SFRB6-135-M67 | 6 | 14 | 135 | 67 | 39 | 21 | 32 | 18 | 105 |
HSK100A-SFRB6-140-M42 | 6 | 14 | 140 | 42 | 69 | 18,4 | 32 | 18 | 110 |
HSK100A-SFRB6-165-M67 | 6 | 14 | 165 | 67 | 69 | 21 | 36 | 18 | 135 |
HSK100A-SFRB8-90-M22 | 8 | 18 | 90 | 22 | 39 | 20,3 | 32 | 24 | 60 |
HSK100A-SFRB8-110-M42 | 8 | 18 | 110 | 42 | 39 | 22,4 | 36 | 24 | 80 |
HSK100A-SFRB8-120-M22 | 8 | 18 | 120 | 22 | 69 | 20,3 | 32 | 24 | 90 |
HSK100A-SFRB8-135-M67 | 8 | 18 | 135 | 67 | 39 | 25 | 32 | 24 | 105 |
HSK100A-SFRB8-140-M42 | 8 | 18 | 140 | 42 | 69 | 22,4 | 32 | 24 | 110 |
HSK100A-SFRB8-165-M67 | 8 | 18 | 165 | 67 | 69 | 25 | 36 | 24 | 135 |
HSK100A-SFRB10-90-M22 | 10 | 22 | 90 | 22 | 39 | 24,3 | 36 | 30 | 60 |
HSK100A-SFRB10-110-M42 | 10 | 22 | 110 | 42 | 39 | 26,4 | 36 | 30 | 80 |
HSK100A-SFRB10-120-M22 | 10 | 22 | 120 | 22 | 69 | 24,3 | 36 | 30 | 90 |
HSK100A-SFRB10-135-M67 | 10 | 22 | 135 | 67 | 39 | 29 | 42 | 30 | 105 |
HSK100A-SFRB10-140-M42 | 10 | 22 | 140 | 42 | 69 | 26,4 | 32 | 30 | 110 |
HSK100A-SFRB10-165-M67 | 10 | 22 | 165 | 67 | 69 | 29 | 36 | 30 | 135 |
HSK100A-SFRB12-90-M22 | 12 | 26 | 90 | 22 | 39 | 28,3 | 50 | 30 | 55 |
HSK100A-SFRB12-110-M42 | 12 | 26 | 110 | 42 | 39 | 30,4 | 42 | 30 | 75 |
HSK100A-SFRB12-120-M22 | 12 | 26 | 120 | 22 | 69 | 28,3 | 42 | 30 | 85 |
HSK100A-SFRB12-135-M67 | 12 | 26 | 135 | 67 | 39 | 33 | 50 | 30 | 100 |
HSK100A-SFRB12-140-M42 | 12 | 26 | 140 | 42 | 69 | 30,4 | 42 | 30 | 105 |
HSK100A-SFRB12-150-M22 | 12 | 26 | 150 | 22 | 99 | 28,3 | 50 | 30 | 115 |
HSK100A-SFRB12-165-M67 | 12 | 26 | 165 | 67 | 69 | 33 | 42 | 30 | 130 |
HSK100A-SFRB12-170-M42 | 12 | 26 | 170 | 42 | 99 | 30,4 | 50 | 30 | 135 |
HSK100A-SFRB12-195-M67 | 12 | 26 | 195 | 67 | 99 | 33 | 50 | 30 | 165 |
HSK100A-SFRB16-90-M22 | 16 | 32 | 22 | 39 | 34,3 | 42 | 32 | 55 | |
HSK100A-SFRB16-110-M42 | 16 | 32 | 110 | 42 | 39 | 36,4 | 42 | 32 | 75 |
HSK100A-SFRB16-120-M22 | 16 | 32 | 120 | 22 | 69 | 34,3 | 42 | 32 | 85 |
HSK100A-SFRB16-135-M67 | 16 | 32 | 135 | 67 | 39 | 39 | 50 | 32 | 100 |
HSK100A-SFRB16-140-M42 | 16 | 32 | 140 | 42 | 69 | 36,4 | 50 | 32 | 105 |
HSK100A-SFRB16-150-M22 | 16 | 32 | 150 | 22 | 99 | 34,3 | 50 | 32 | 115 |
HSK100A-SFRB16-165-M67 | 16 | 32 | 165 | 67 | 69 | 39 | 42 | 32 | 130 |
HSK100A-SFRB16-170-M42 | 16 | 32 | 170 | 42 | 99 | 36,4 | 50 | 32 | 135 |
HSK100A-SFRB16-195-M67 | 16 | 32 | 195 | 67 | 99 | 39 | 50 | 32 | 160 |
HSK100A-SFRB20-110-M42 | 20 | 38 | 110 | 42 | 39 | 42,4 | 53 | 40 | 75 |
HSK100A-SFRB20-135-M67 | 20 | 38 | 135 | 67 | 39 | 45 | 53 | 40 | 100 |
HSK100A-SFRB20-140-M42 | 20 </Td> | 38 | 140 | 42 | 69 | 42,4 | 53 | 40 | 105 |
HSK100A-SFRB20-165-M67 | 20 | 38 | 165 | 67 | 69 | 45 | 53 | 40 | 130 |
HSK100A-SFRB20-170-M42 | 20 | 38 | 170 | 42 | 99 | 42,4 | 50 | 40 | 135 |
HSK100A-SFRB25-110-M42 | 25 | 45 | 110 | 42 | 39 | 49,4 | 50 | 45 | 75 |
HSK100A-SFRB25-140-M42 | 25 | 45 | 140 | 42 | 69 | 49,4 | 50 | 45 | 105 |
